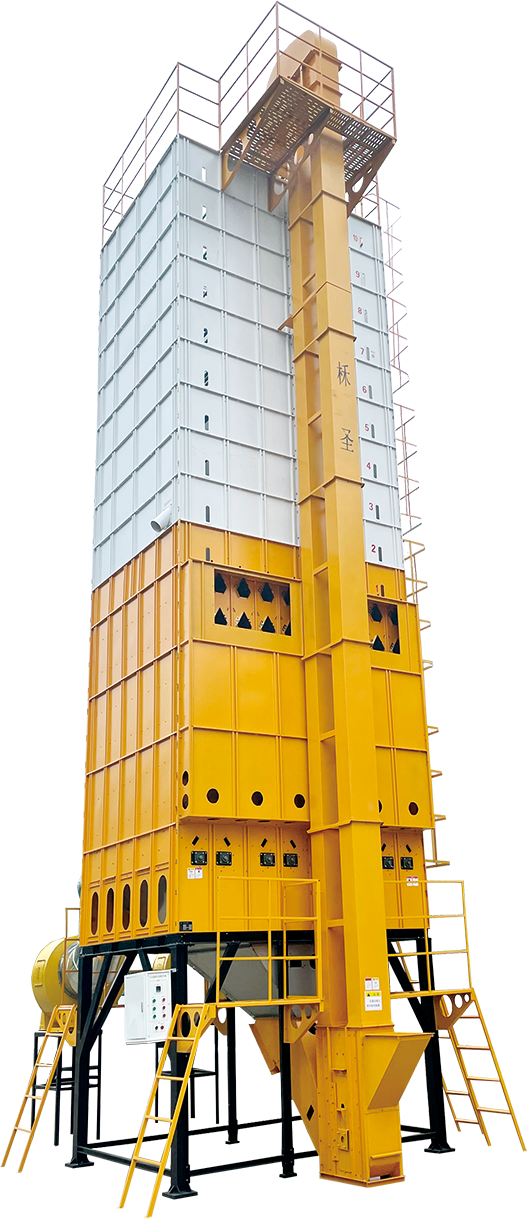

5HHS-30M型低温谷物干燥机

5HHS-30M型低温谷物干燥机

5HHS-30Mtype low temperature grain dryer

上下无绞龙混流式干燥，高效率、360度无死角烘干技术：

5HHS-30M型干燥机的干燥箱采用不锈钢(选配）角管交叉导流，采用负压低温干燥技术，多级混流烘干与缓速相结合的烘干工艺，相比传统烘干机提高烘干效率30%；独特的角管混流式烘干技术保证您的粮食在烘干时全方位360度无死角，保证谷物烘干后的水分均匀性，独特的上下无绞龙和底部出料设计，破碎率更低，出粮速度更快，在线水分仪实时监测谷物含水量，烘干谷物达到用户设定的水分值后自动停机。

整机钣金厚板配置，使用寿命长：

干燥机整机箱体钣金零部件采用厚度≥1.5的优质碳合金钢板，干燥箱内部角管采用优质碳合金不锈钢材质(选配)，使干燥机经久耐用，使用寿命长。

特大烘干层，提高烘干效率，降低烘干成本：

国内先进排粮结构设计，一机多用设计。可干燥水稻、小麦、玉米、油菜籽、大豆等颗粒状谷物；干燥速度快，3.5M*2.5M*2.4M特大干燥层，采用不锈钢角管式混流干燥(选配)，干燥性能大幅度提升，烘干均匀且效率高。

智能控制，安全可靠，烘干过程全程无忧：

整机设备自动化程度高，触摸屏操控界面，操作简单方便，控制系统融合工业4.0设计，互联网+时代的新型智能控制系统(选配)，全程自动化控制，并且能给您提供快速，高效，精准的售后服务，设备故障报警，满粮报警，热继电器，热风温度传感器，设计全方位安全装置，防过载等安全装置，安全可靠。

High efficiency and 360° no dead angle drying technology：

5HHS-30M dryer drying box using stainless steel (optional) corner tube cross flow, using negative pressure low temperature drying technology, multi-stage mixed flow drying and slow combined drying process, compared with the traditional dryer to improve drying efficiency 30%; Unique Angle of tube mixed flow drying technology to ensure your full 360 degrees when drying grain no dead Angle, ensure the grain drying moisture uniformity, unique design without ground dragon and bottom discharging from top to bottom, broken rate is lower, the food faster, real-time monitoring of online moisture meter, grain moisture content, drying grain reach moisture value set out by the user automatic stop.

Whole machine sheet metal is thick plate，long service life:

The outer sheet metal of the dryer is high quality carbon alloy steel plate with thickness of more than2mm. The inner angle pipes of the drying cabinet are made of high quality carbon alloy stainless steel, which makes the dryer durable and have long service life.

Super drying cabinet can make drying process with high efficiency and at low cost:

Domestic advanced grain dryer discharging structure design can suitable for many varieties of grain, such as rice, wheat, corn, rapeseed, soybean and so on:The drying speed is fast, the3.5M*2.5M*2.4M super drying cabinet is made of stainless steel angle pipes mixed flow drying, which makes drying speed fast, the drying performance is greatly improved, also make the drying process with the high efficiency.

Intelligent control make machine running safe and reliable:

The whole machine has high automation, touch-screen control interface, simple reliability and easy operate a tion, electric cabinet on equipment with industrial 4.0 intelligent control system, we can accurate position. ing problems in the background of the equipment so that it can response after-sales intelligently, here is the new mode of after-sales service internet age, this design will provide after-sales service for you effec. tively and accurately. There is a complete set of safety control systems on the equipment including malfur、tion alarm, full grain alarm, hot relay, hot air  temperature sensor, overload protection and other safety. devices to make the running process of the equipment can run safely and steadily.

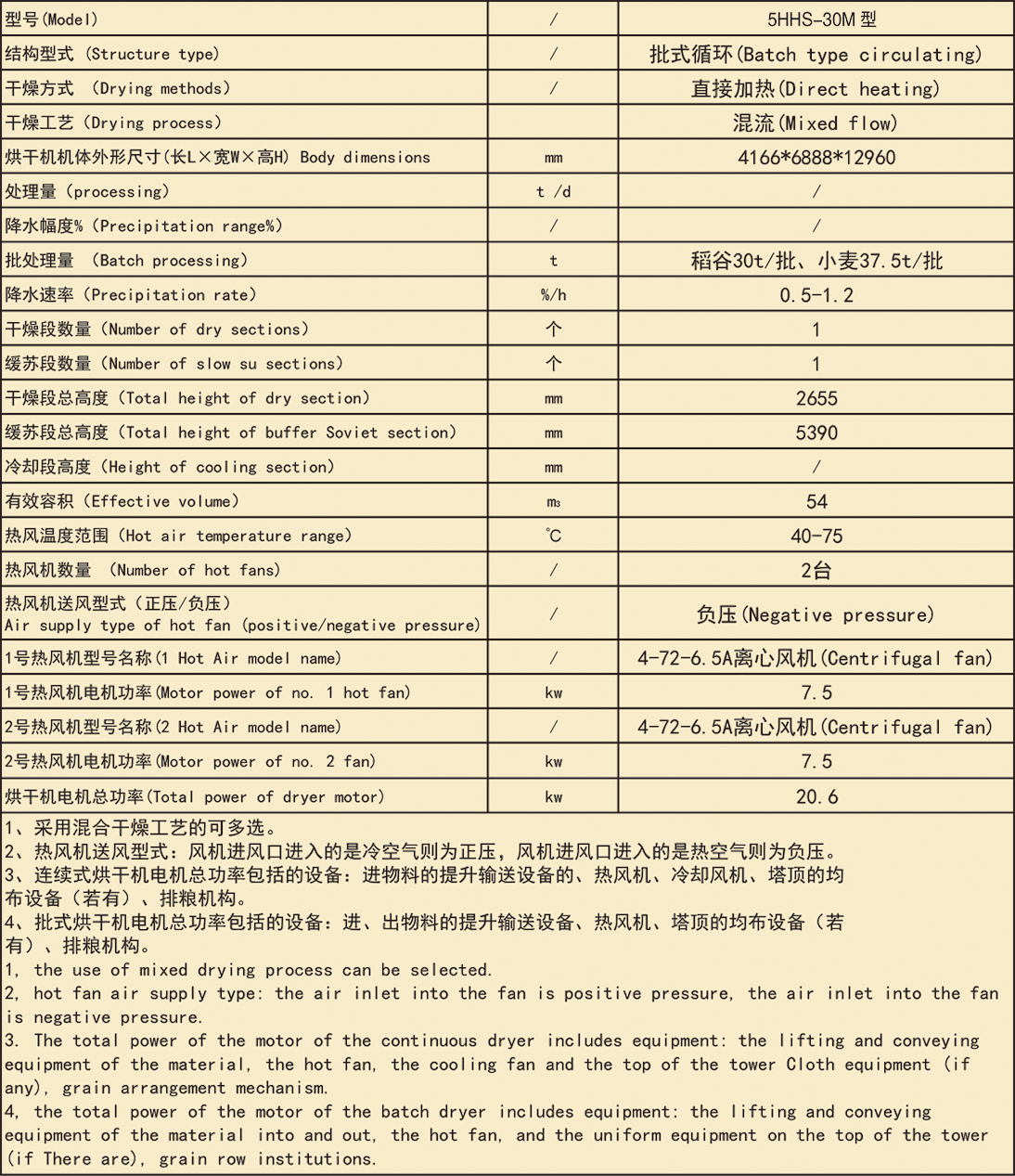

5HHS-30M型低温谷物干燥机——技术参数

备注：

1、本表所列之性能及降水率为参考数值，稻谷水份是由28%烘至15%；小麦是由30%烘至14%为止的数值，实际数值会因外气温度、相对湿度、干燥品种、热风温度、进风温度、热源类型和品质及干前、干后含水率而有所差异。

2、上表中的数据仅供参考，因产品技术不断改进，本公司更改后恕不另行通知。

1、 he performance and precipitation rate listed in this table are reference values, the water content of rice is reduced from 28%. to 15%, and the value of wheatis from 30%to 14%. The actual value vary according to external gas temperature, relative humility. dry variety, hot air temperature, inlettemperature, type and quality of heat source, and moisture content before and aterdy.

2、Specification is subject to change without prior notice.

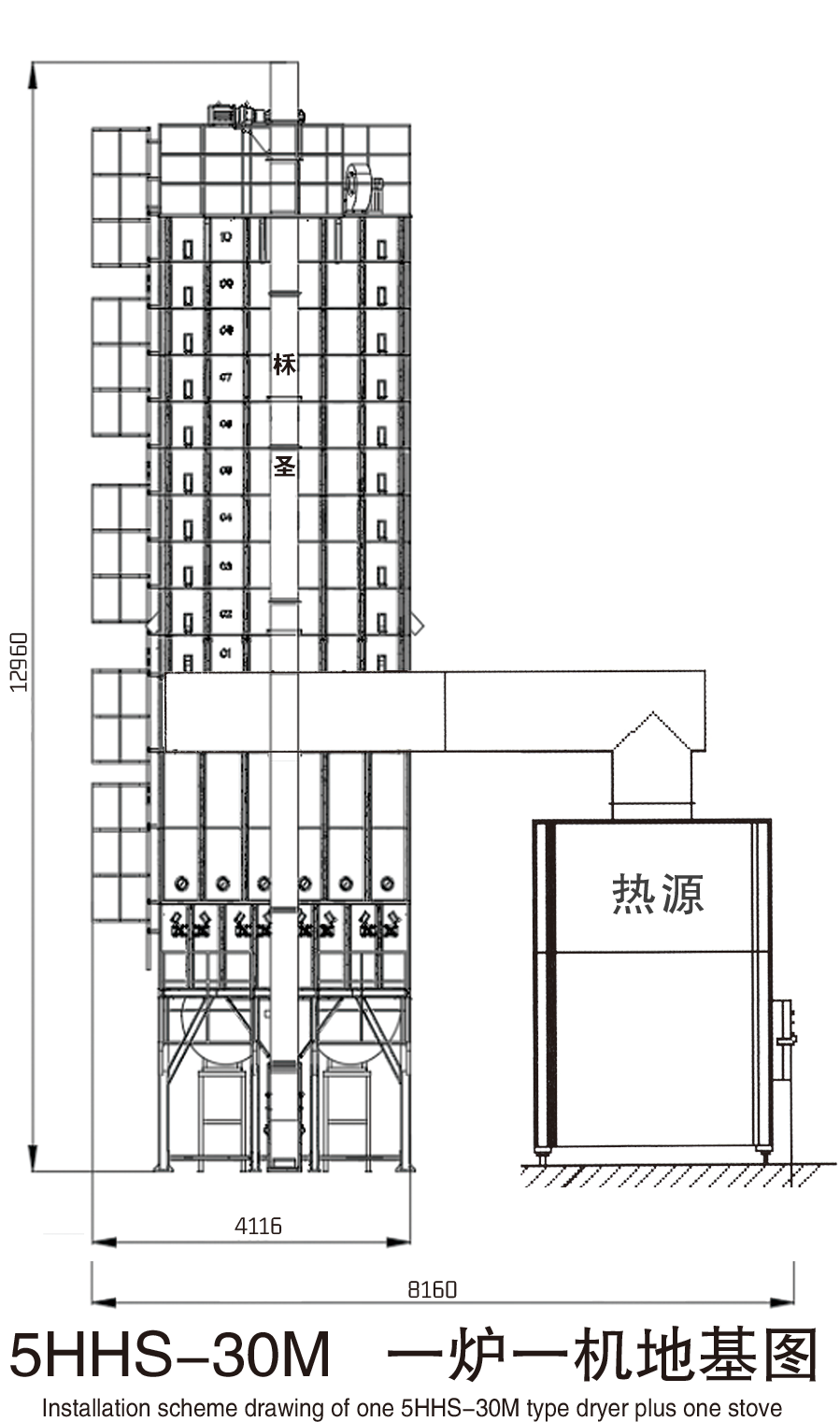

5HHS-30M型低温谷物干燥机——标准配置地基图

单位 （mm） Unit （mm）

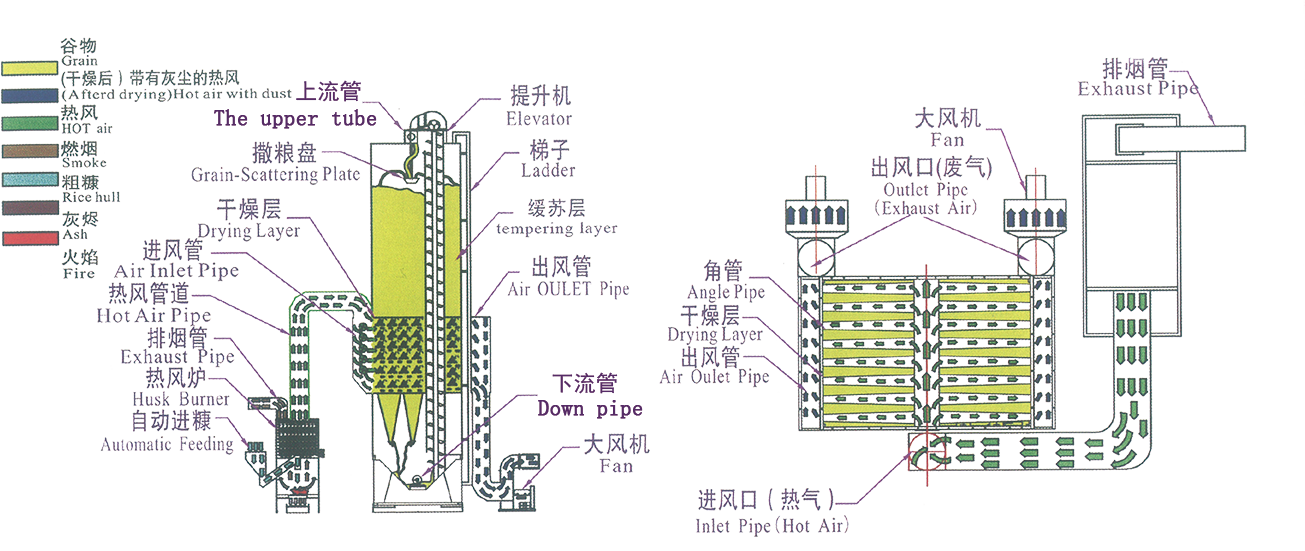

5HHS-30M型低温谷物干燥机——原理图

The schematic diagram of 5HHS-30Mtype grain dryer

工作原理

单个批次谷物进入干燥机后，通过电器件的相互配合运行使得谷物在干燥机中进行有序循环，再由热风炉燃烧燃料产生热风，在单台电动风机的作用下，让热风通过混流式干燥层的风道，穿透和功加热谷物，通过空气流动带走谷物中的水分，带有水分的废气经过风机的吸力通过管道排出机外，干燥的谷物经过自动在线水分仪检测达到预先设置的水分点后，停机，干燥完成。

Working principle

After a single batch of grain into the drying machine, use the electric parts together running makes grain an orderly circulation in the dryer, again by hot blast stove burning fuel to produce hot air, under the action of a single electric fan, let air by mixed flow drying layer of air duct, penetration and heating grain work, take away moisture from the grain through air flow, The exhaust gas with moisture is discharged from the machine through the suction of the fan through the pipe, and the dry grain is detected by the automatic online moisture meter to reach the preset moisture point, then the machine is stopped and the drying is completed.
