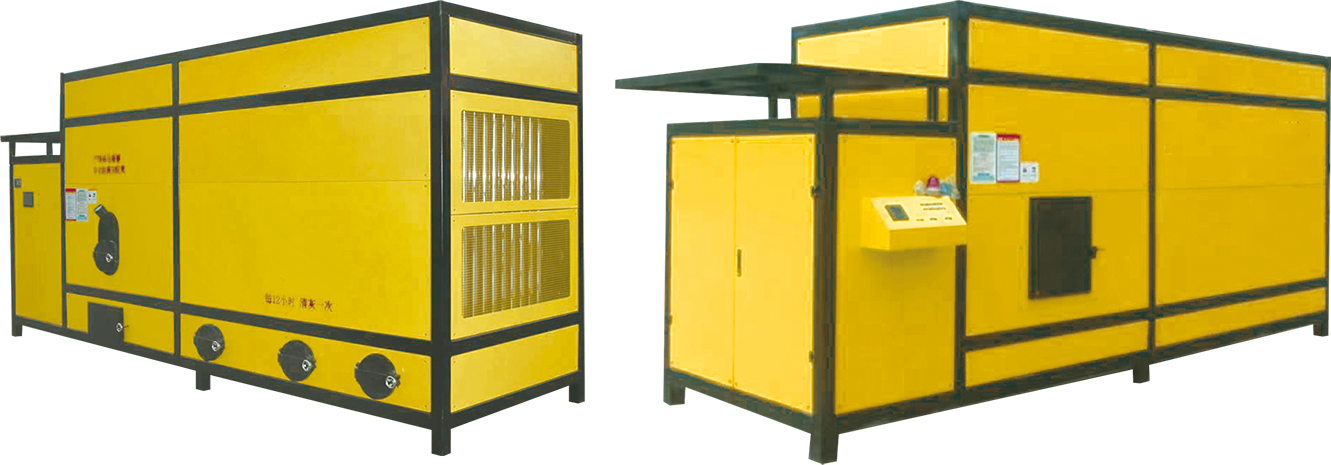

5L系列节能环保生物颗粒热风炉

5L系列节能环保生物颗粒热风炉

5L series energy saving and environmental protection biological particle hot blast stove

5L-60、75、90、120系列节能环保型两用热风炉工作原理：

生物颗料、木柴等燃料送入炉膛燃烧，产生热量，燃烧过后烟气输入热交换器中多次循环后排出，冷风经过交换器外壁加热后输出，提高热效率，节约能耗，有效的降低成本。升温快，燃烧充分，灰渣少。排烟量低，经过除尘，符合国家环保标准要求。

The working principle of 5L-60、75、90、120 series hot air stove:

The fuel of biomass particles,firewood and so on is sent into the stove combustion to produce heat and flue gas,the flue gas is input to the heat exchanger and then discharged after many cycles,the cold wind is output after heating through the outer wall of the exchanger to the thermal efficiency,it has the characteristics of improving heat efficiency,heating up quickly,saving energy and reducing the cost effectively.Fast heating,full combustion and less ash produced.The exhaust volume is low,and after dust removal,it meets the requirements of national environmental protection standards.

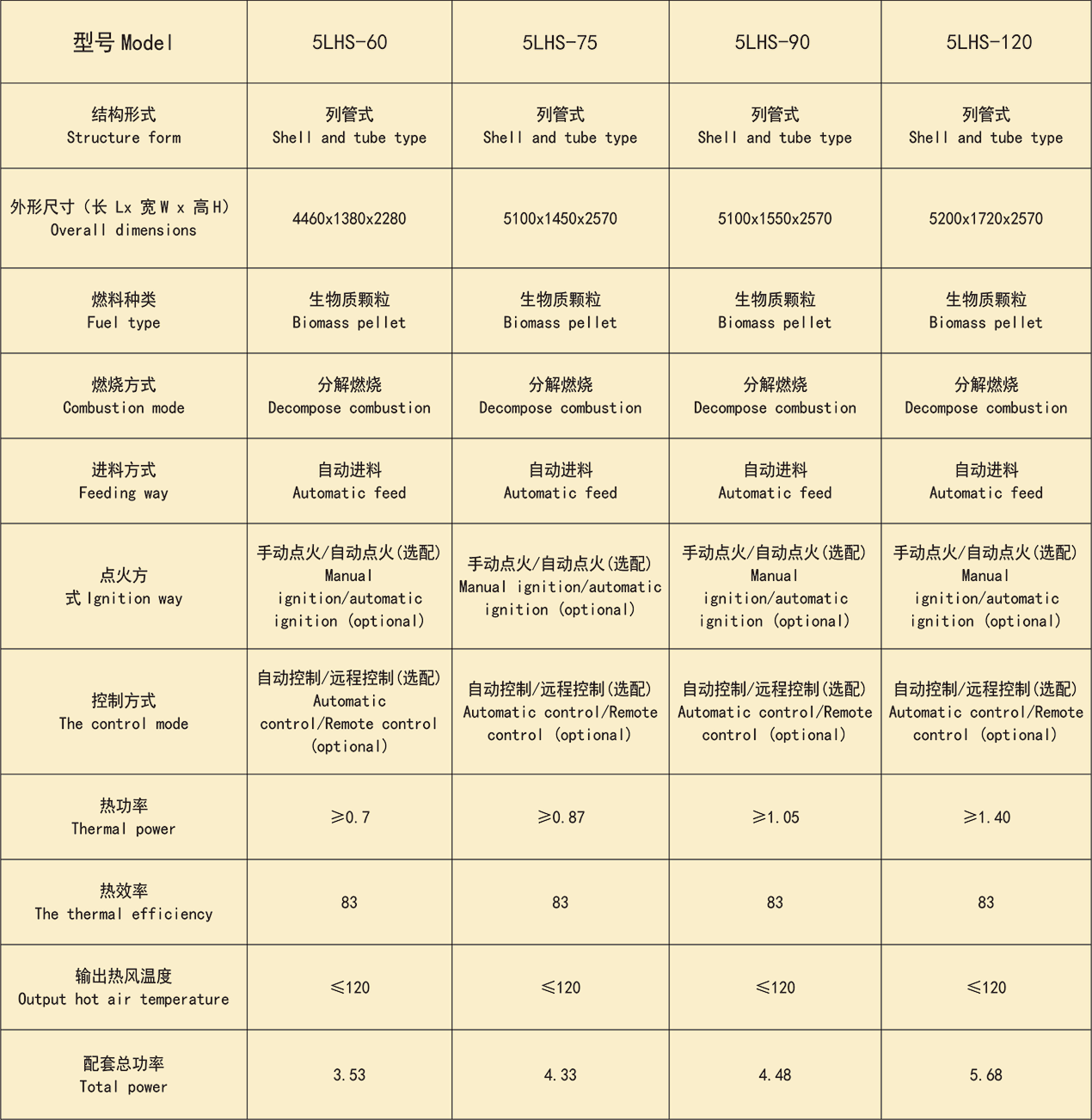

5L系列节能环保生物颗粒热风炉——技术参数

备注：

1、上表所列参数的实际数值会因外界气温、相对温度、燃料品质、及然料干湿度而有所差异。

2、上表中的数据仅供参考，因产品技术不断改进，本公司更改后恕不另行通知。

Remarks:

1、The actual value of the parameters listed in the table above will be different from outside temperature，relative temperature，fuel quality and fuel dry humidity.

2、The data in the above table are for reference only.Due to the continuous improvement of product technology，the company will not be notified without further notice.
